NUCLEUS 102R Slim Panel

تفاصيل المنتج

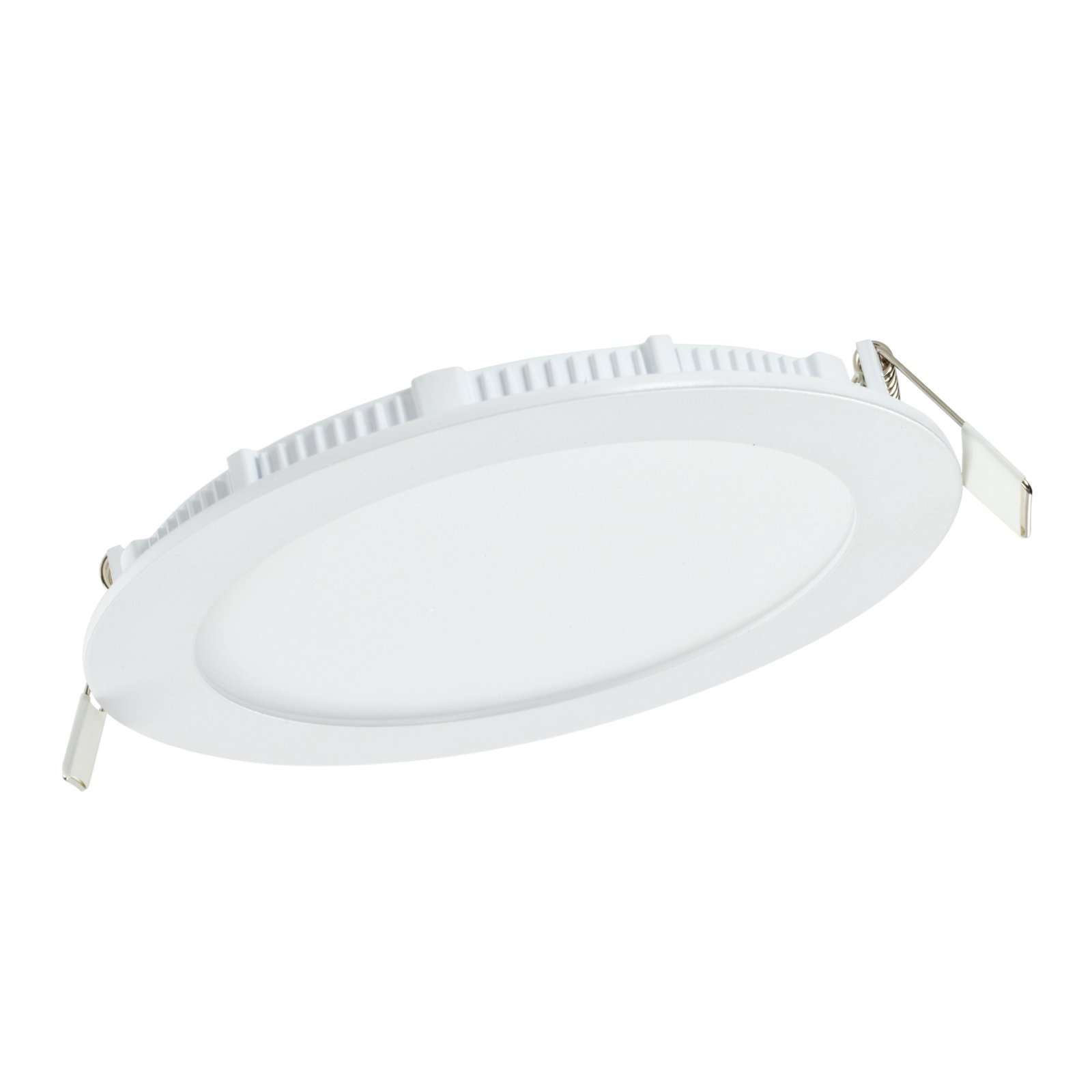

NUCLEUS 102R Slim Panel — Core / flush panel lighting. Part of the Hadron NUCLEUS family (Panel Lights). Power 4W–24W, efficacy 90-100 lm/w, voltage 110-240V/220-240V. Request a quote from Hadron Lights for the power and size variant that fits your project.

المواصفات

Power

4W–24W

Voltage

110-240V/220-240V

Luminous efficacy

90-100 lm/w

Model HDR-102R-4W

Power: 4W · Voltage: 110-240V/220-240V · luminous efficieny: 90-100 lm/w · Size: 109*35mm · Cut out: 90mm

Model HDR-102R-6W

Power: 6W · Voltage: 110-240V/220-240V · luminous efficieny: 90-100 lm/w · Size: 120*35mm · Cut out: 105mm

Model HDR-102R-9W

Power: 9W · Voltage: 110-240V/220-240V · luminous efficieny: 90-100 lm/w · Size: 146*35mm · Cut out: 130mm

Model HDR-102R-12W

Power: 12W · Voltage: 110-240V/220-240V · luminous efficieny: 90-100 lm/w · Size: 173*35mm · Cut out: 160mm

Model HDR-102R-18W

Power: 18W · Voltage: 110-240V/220-240V · luminous efficieny: 90-100 lm/w · Size: 225*35mm · Cut out: 205mm

Model HDR-102R-20W

Power: 20W · Voltage: 110-240V/220-240V · luminous efficieny: 90-100 lm/w · Size: 237*35mm · Cut out: 220mm

Model HDR-102R-24W

Power: 24W · Voltage: 110-240V/220-240V · luminous efficieny: 90-100 lm/w · Size: 300*35mm · Cut out: 285mm
