PROTON 75 Pinhole Recessed Trimless

Beschreibung

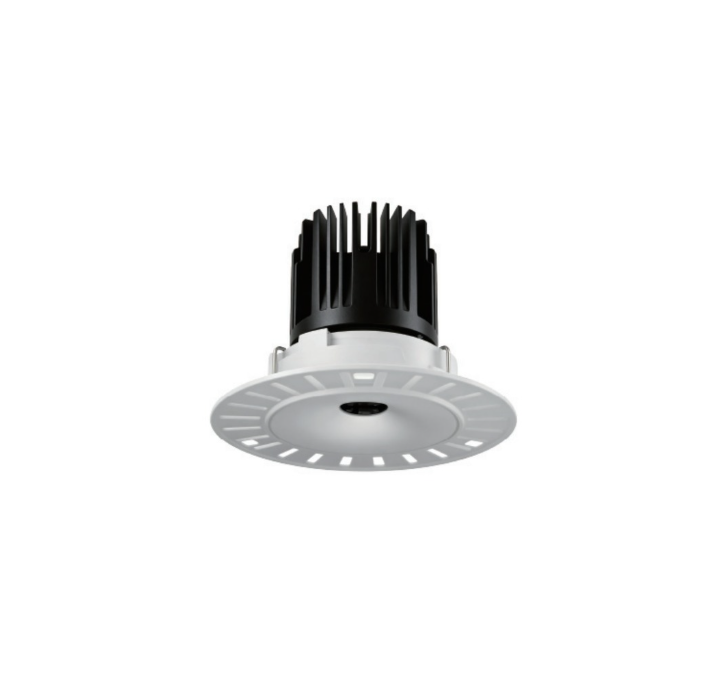

Boasting a 75mm cutout and a deep pinhole design, the PROTON Pinhole recessed spotlight delivers precise, glare-free accent lighting within a compact form. Its ultra-small aperture and deep-recessed optical structure fully conceal the LED source, producing clean, soft beam spots with no visible glare. Fitted with a precision optical lens and high-CRI COB chip, it produces soft, glare-free illumination with superior colour rendition. Available in both with-trim and trimless versions in white and black finishes, it blends seamlessly into modern interior designs. Key Features

Technische Daten

PN

HDR-GA75-R06QT

IP Rating

IP20

UGR

<9

Light Quality

≥97≥90

Lifetime

>50,000 hrs

CCT

2700K/3000K/3500K/4000K2700k—6500K/1800K—3000K

Lumen

40lm/w (3000K) 50lm/w (3000K)

Power

12W

Beam Anglel

27°/36°

Control

On/off, DIMTRIAC/ PHASE-CUT, DIM 0/1-10V, DIM DALI

Input

AC220-240V 50/60Hz

Downloads

• HDR-GA75-R06QT-Installation-Manualpdf
• HDR-GA75-R06Q-IESzip
• HDR-GA75-R06Q-LDTzip
