NUCLEUS P12R Slim Panel

Description

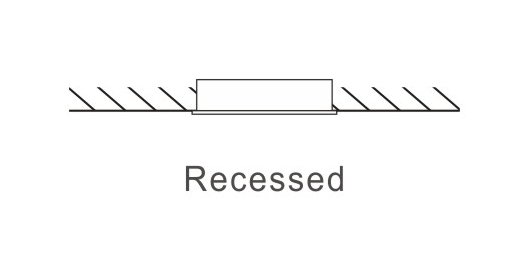

NUCLEUS P12R Slim Panel — Core / flush panel lighting. Part of the Hadron NUCLEUS family (Panel Lights). Power 9W–36W, efficacy 90-100 lm/w, voltage 220-240V. Request a quote from Hadron Lights for the power and size variant that fits your project.

Caractéristiques

Power

9W–36W

Voltage

220-240V

Luminous efficacy

90-100 lm/w

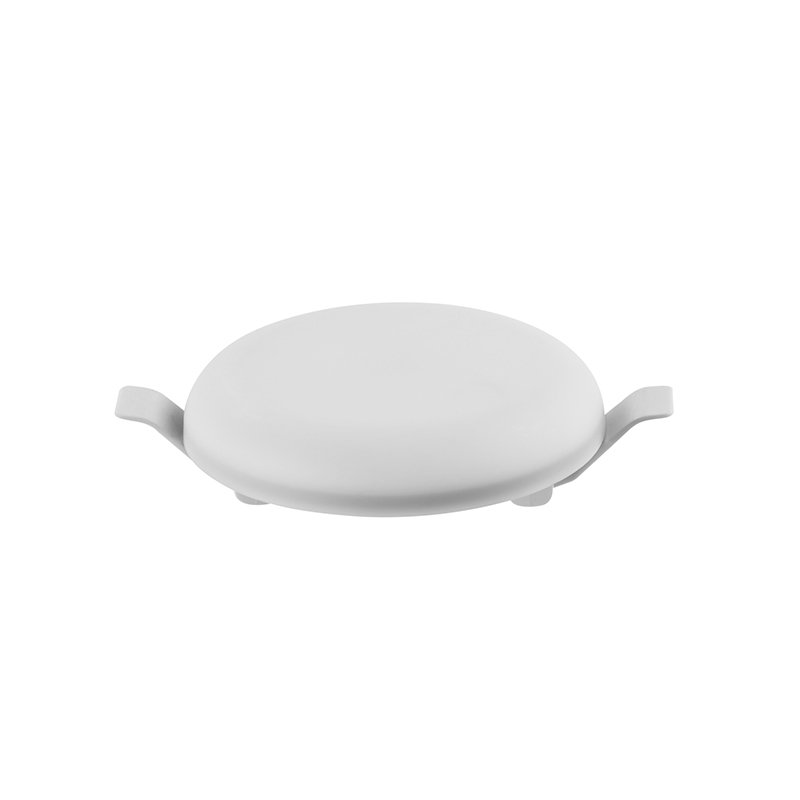

Model HDR-P12R-9W

Power: 9W · Voltage: 220-240V · Luminous efficiency: 90-100 lm/w · size: 90*18 mm · Cut out: 60*75 mm

Model HDR-P12R-18W

Power: 18W · Voltage: 220-240V · Luminous efficiency: 90-100 lm/w · size: 120*23 mm · Cut out: 60*95 mm

Model HDR-P12R-24W

Power: 24W · Voltage: 220-240V · Luminous efficiency: 90-100 lm/w · size: 175*25 mm · Cut out: 60*145 mm

Model HDR-P12R-36W

Power: 36W · Voltage: 220-240V · Luminous efficiency: 90-100 lm/w · size: 225*27 mm · Cut out: 60*205 mm

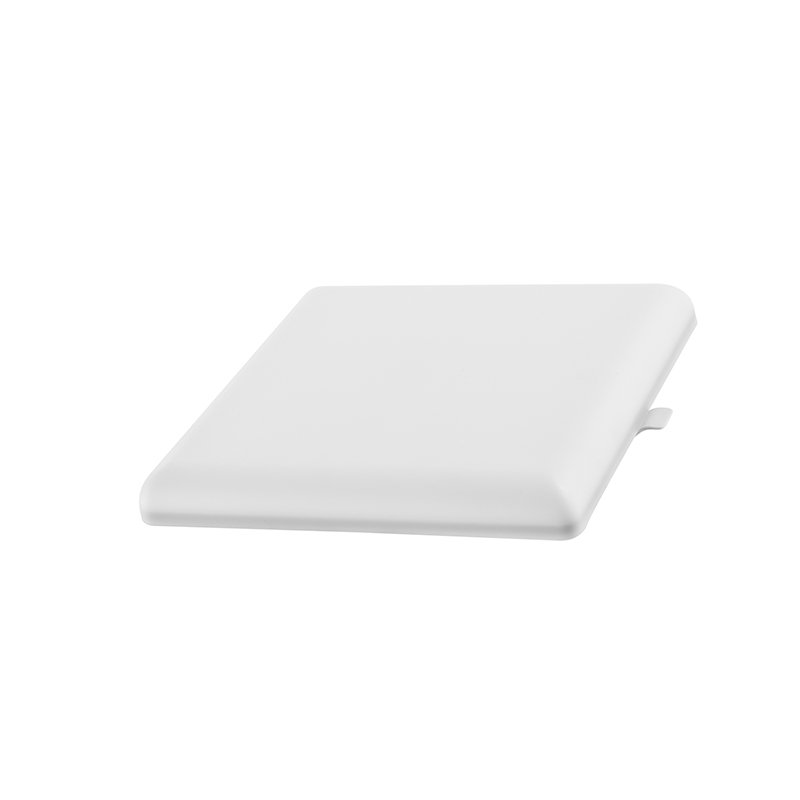

Model HDR-P12S-9W

Power: 9W · Voltage: 220-240V · Luminous efficiency: 90-100 lm/w · size: 90*90*18 mm · Cut out: 60*75 mm

Model HDR-P12S-18W

Power: 18W · Voltage: 220-240V · Luminous efficiency: 90-100 lm/w · size: 120*120*23 mm · Cut out: 60*95 mm

Model HDR-P12S-24W

Power: 24W · Voltage: 220-240V · Luminous efficiency: 90-100 lm/w · size: 175*175*25 mm · Cut out: 60*145 mm

Model HDR-P12S-36W

Power: 36W · Voltage: 220-240V · Luminous efficiency: 90-100 lm/w · size: 225*225*27 mm · Cut out: 60*205 mm
