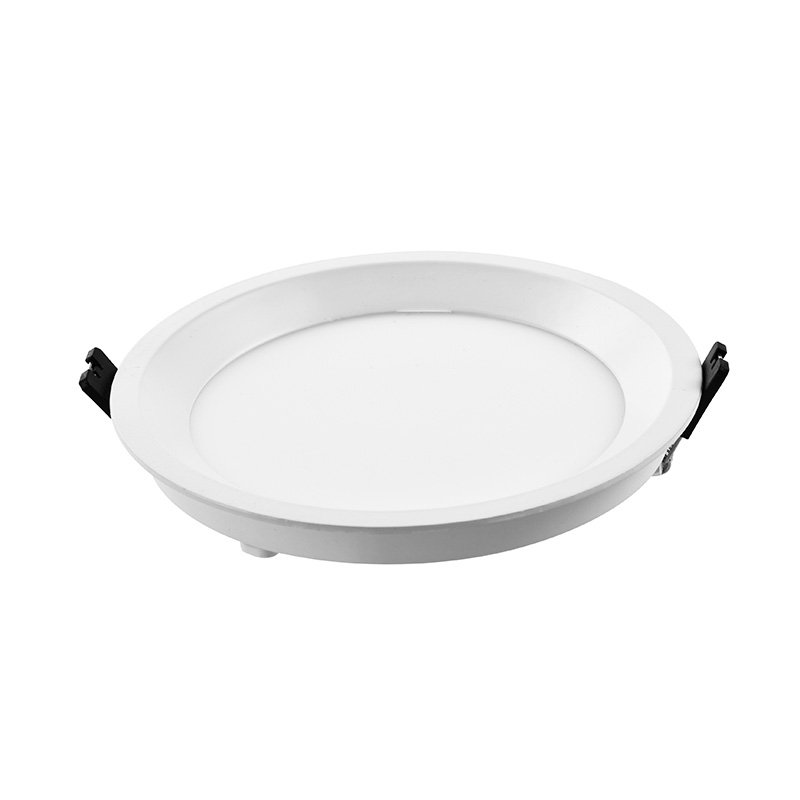

NUCLEUS 123R Round Panel

Descrizione

NUCLEUS 123R Round Panel — Core / flush panel lighting. Part of the Hadron NUCLEUS family (Panel Lights). Power 5W–22W, efficacy 90-100 lm/w, voltage 110-240V/220-240V. Request a quote from Hadron Lights for the power and size variant that fits your project.

Specifiche

Power

5W–22W

Voltage

110-240V/220-240V

Luminous efficacy

90-100 lm/w

Model HDR-123R-5W

Power: 5W · Voltage: 110-240V/220-240V · Luminous efficieny: 90-100 lm/w · Size: 90*29mm · Cut out: 75mm

Model HDR-123R-9W

Power: 9W · Voltage: 110-240V/220-240V · Luminous efficieny: 90-100 lm/w · Size: 120*29mm · Cut out: 105mm

Model HDR-123R-12W

Power: 12W · Voltage: 110-240V/220-240V · Luminous efficieny: 90-100 lm/w · Size: 140*29mm · Cut out: 125mm

Model HDR-123R-16W

Power: 16W · Voltage: 110-240V/220-240V · Luminous efficieny: 90-100 lm/w · Size: 170*29mm · Cut out: 152mm

Model HDR-123R-22W

Power: 22W · Voltage: 110-240V/220-240V · Luminous efficieny: 90-100 lm/w · Size: 220*29mm · Cut out: 205mm
