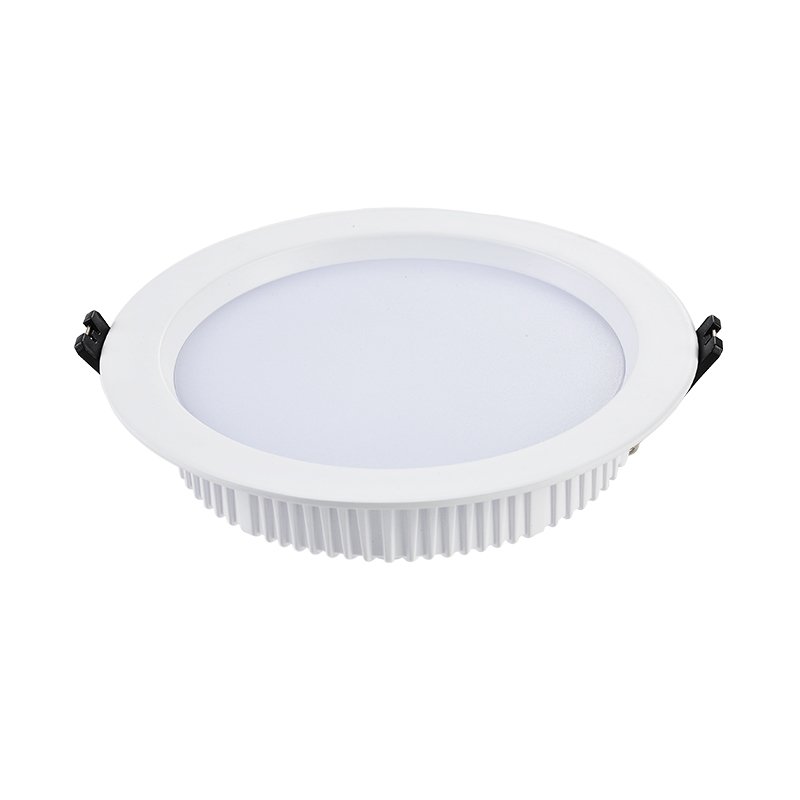

NUCLEUS 116D Panel

Ürün detayları

NUCLEUS 116D Panel — Core / flush panel lighting. Part of the Hadron NUCLEUS family (Panel Lights). Power 12W–40W, efficacy 80-120 lm/w, voltage 220-240V. Request a quote from Hadron Lights for the power and size variant that fits your project.

Teknik özellikler

Power

12W–40W

Voltage

220-240V

Luminous efficacy

80-120 lm/w

Model HDR-116D-12W

Power: 12W · Voltage: 220-240V · Luminous efficiency: 80-120 lm/w · Size: 105*30mm · Cut out: 75mm

Model HDR-116D-16W

Power: 16W · Voltage: 220-240V · Luminous efficiency: 80-120 lm/w · Size: 120*32mm · Cut out: 95mm

Model HDR-116D-24W

Power: 24W · Voltage: 220-240V · Luminous efficiency: 80-120 lm/w · Size: 170*32mm · Cut out: 145mm

Model HDR-116D-40W

Power: 40W · Voltage: 220-240V · Luminous efficiency: 80-120 lm/w · Size: 230*32mm · Cut out: 190mm
