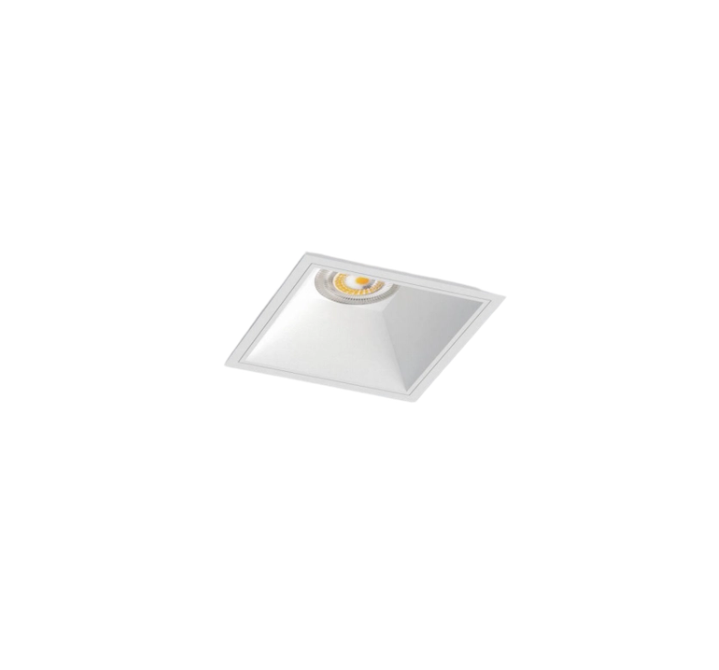

ELECTRON 75 Square Slim-Line Trimmed

产品详情

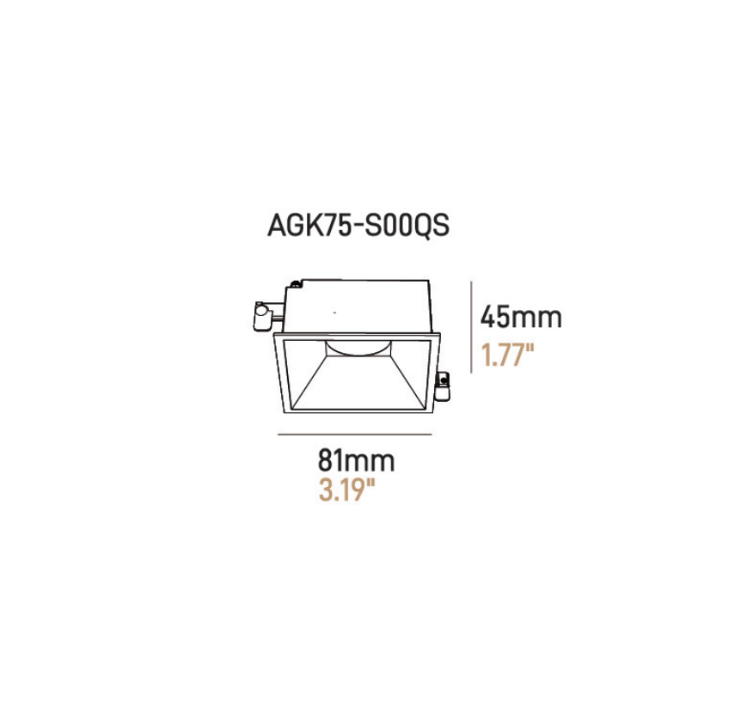

The ELECTRON Square Slim-Line Trimmed brings the award-winning minimalist aesthetic of the Slim-Line family into a clean square form factor. Designed with an ultra-narrow trim and a low-profile 45mm housing, this 75×75mm square recessed downlight delivers a crisp, architectural appearance that blends seamlessly into modern ceiling designs. Featuring three reflector finish options—White, Black, and Golden—it adapts to any interior palette, from Scandinavian minimalism to warm luxury. With UGR<16 deep anti-glare optics, 97Ra high color rendering, and full 2700K–6500K tunable white capability, it delivers uncompromising light quality for high-end residential, boutique retail, and hospitality spaces. The spring-clip trimmed design ensures fast, secure installation and easy maintenance, making it ideal for both new construction and retrofit projects.

技术规格

PN

HDR-GK75-S00QS

IP Rating

IP20

LightDirection

Fixed

UGR

<16

Light Quality

SIGHTComfort VisualCode Ra97

Lifetime

>50,000 hrs

CCT

2700K/3000K/3500K/4000K2700k–6500k/1800k–3000k

Lumen

65lm/W

Power

8W

Beam Anglel

25°/ 50°

Control

On/off, DIMTRIAC/ PHASE-CUT, DIM 0/1-10V, DIM DALI

Input

AC220-240V 50/60Hz
