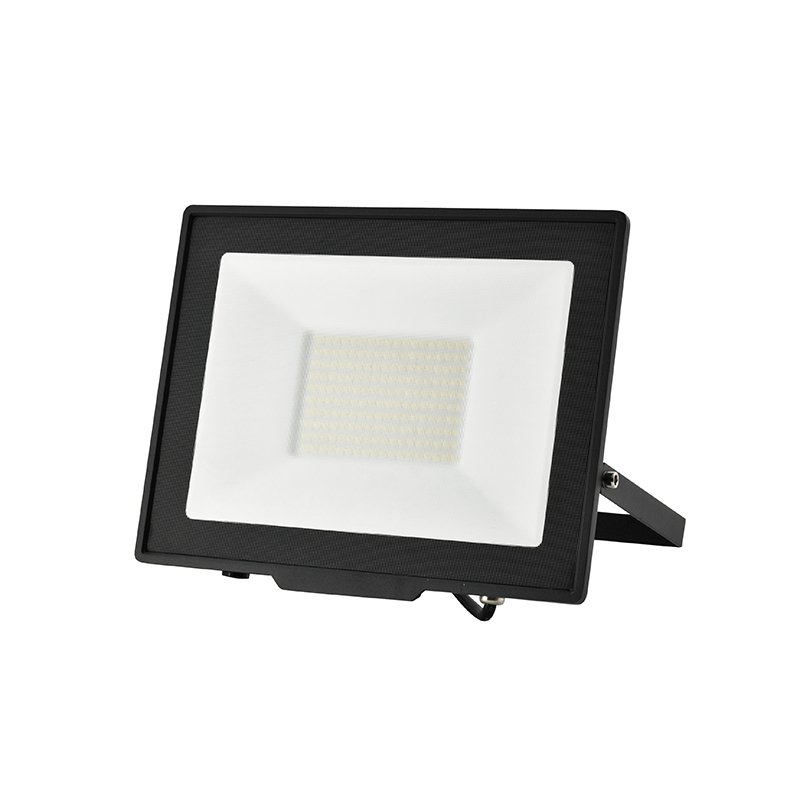

QUASAR 409 Square DOB Flood

产品详情

QUASAR 409 Square DOB Flood — Long-range flood / tunnel lighting. Part of the Hadron QUASAR family (Flood & Tunnel Lights). Power 10W–100W.. Features: Slim DOB Design; Body and heat sink made of aluminum; Woven glass Diffuser; Protected against water & dust, IP65. Applications: Facade lighting, Landscaping, Open Areas, Working AreasMaterials of Optics：GlassMaterials of Housing：Aluminum. Request a quote from Hadron Lights for the power and size variant that fits your project.

技术规格

Power

10W–100W

Features

Slim DOB Design; Body and heat sink made of aluminum; Woven glass Diffuser; Protected against water & dust, IP65

Applications

Facade lighting, Landscaping, Open Areas, Working AreasMaterials of Optics：GlassMaterials of Housing：Aluminum

Model HDR-409-10W

Power: 10W · Valtage: 110-240V/220-240V · Lumen efficieny: 90 lm/w · Size: 115*92*26 mm

Model HDR-409-30W

Power: 30W · Valtage: 110-240V/220-240V · Lumen efficieny: 90 lm/w · Size: 170*133*26 mm

Model HDR-409-45W

Power: 45W · Valtage: 110-240V/220-240V · Lumen efficieny: 90 lm/w · Size: 200*147*26 mm

Model HDR-409-70W

Power: 70W · Valtage: 110-240V/220-240V · Lumen efficieny: 90 lm/w · Size: 245*187*26 mm

Model HDR-409-80W

Power: 80W · Valtage: 110-240V/220-240V · Lumen efficieny: 90 lm/w · Size: 290*228*26 mm

Model HDR-409-100W

Power: 100W · Valtage: 110-240V/220-240V · Lumen efficieny: 90 lm/w · Size: 350*280*26 mm
